KORAL KDB Distribution blocks

Reference: koral-kdb
This product is in stock
Manufacturer Koral (Turkija)
  • Universal compatibility with various wire types and sizes
  • High-quality, durable materials ensure long-lasting performance
  • Easy and secure installation with robust clamping mechanism
  • Compact design ideal for space-constrained applications
  • Reliable electrical connectivity for industrial and commercial use

Read more

16,50 € 14,03 €tax incl. Lowest price in 30 days: 14,03 €
Quantity (vnt.):

Warehouse stock

Out of stock
Elstila logistikos centras Gamybos g. 10 (parduotuvės nėra)
+370 37 205802
I - V 07:00 - 16:00
In stock
Elstila (Kaunas) Jonavos g. 62a
+370 37 205802
I - V 08:00 - 17:00
Out of stock
Elstila (Klaipėda) Šiaurės pr. 11
+370 46 380100
I - V 08:00 - 17:00
In stock
Elstila (Vilnius) Geologų g. 7a
+370 5 2104888
I - V 08:00 - 17:00

More info

The KDB series of distribution blocks offers excellent ease of use, cost-effectiveness, and safety, making it an ideal choice for applications where power needs to be supplied and distributed through conductors with relatively large cross-sections.

Offers three configuration options: Distribute unipolar and multipolar power lines or combine multiple inputs. Can be mounted on a DIN rail or plate, saving up to 50% of rail space compared to conventional copper bars. Reduces assembly time by 80% by eliminating the need for additional fastening and insulating components. Increase the number of outputs by using the optional input and connecting two KDB units together.

Each version in the series is approved for use with both aluminum and copper conductors, thanks to a specialized coating that fully covers the aluminum body of the component.

Product features

Nominal voltage 1000 V AC / 1500 V DC
Color pilka
Mounting ant DIN bėgelio arba su varžtais

Product modifications (4)

Modification Manufacturer code Product code Price Availability Action

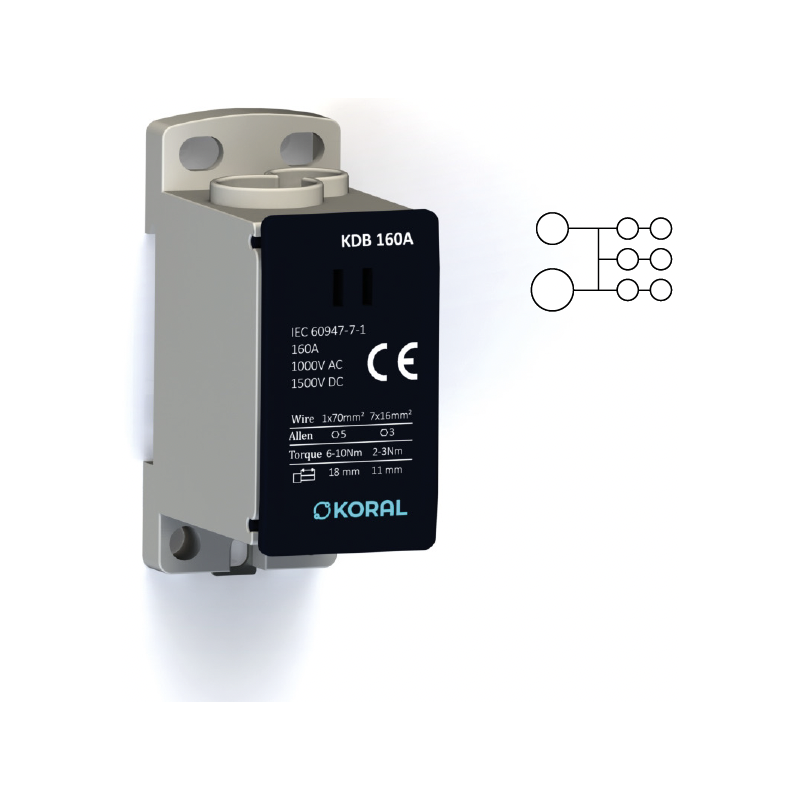

Gnybtas 1xAI/Cu70 6xCu 2.5-16mm2,160A (KDB160A) pilk. KDB160A P038715 14,71 € In Stock

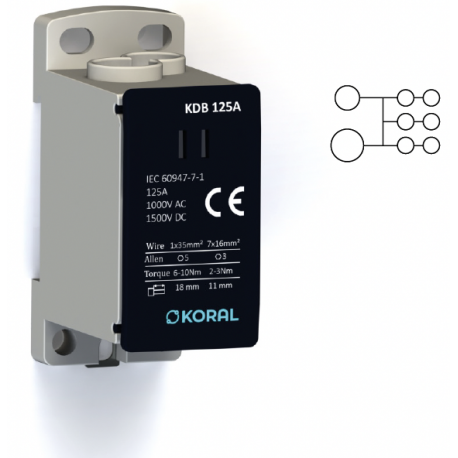

Gnybtas 1xAI/Cu35 6xCu 2.5-16mm2,125A (KDB125A) pilk. KDB125A P038714 14,03 € In Stock
Gnybtas 1xAl/Cu185 2x35 mm2, 4x10mm2, 5x16 mm2 400A (KDB400A) p KDB400A P038717 29,75 € In Stock

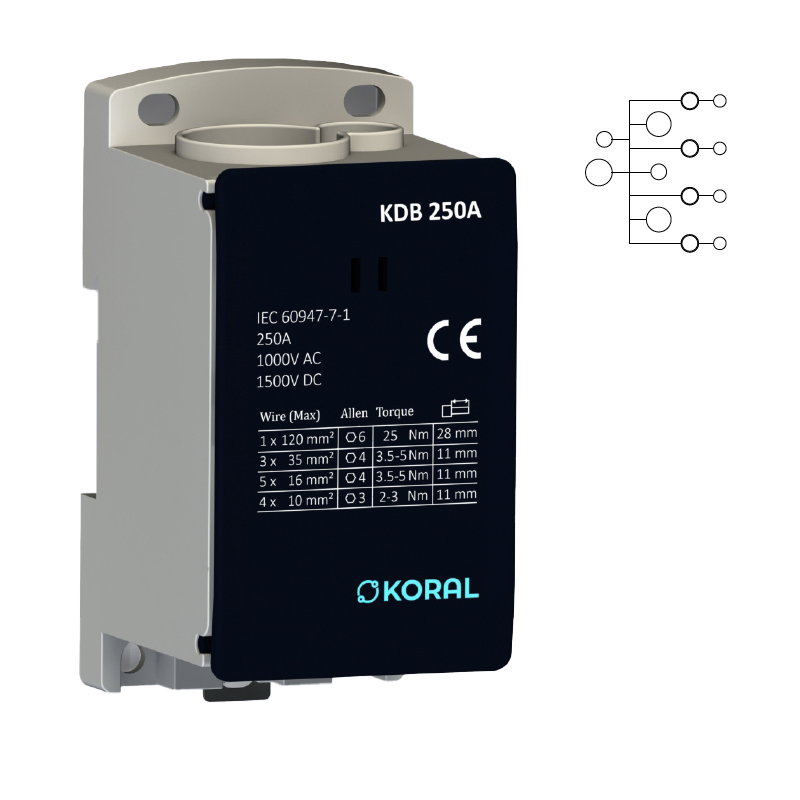

Gnybtas 1xAl/Cu120 2x35 mm2, 4x10mm2, 5x16 mm2 250A (KDB250A) p KDB250A P038716 23,80 € In Stock
