ELEKTRO-PLAST PI3P 80x52x31 3xPG9 IP68 installation box
Reference:
P041732
Code:
63.3
Manufacturer
- High-performance sealant with IP55 protection rating, ensuring superior resistance to dust and water ingress.
- Flame-retardant with V-0 classification, providing enhanced safety in electrical applications.
- Versatile usage range of 10-30, suitable for various industrial and commercial environments.
- Durable and reliable, designed to meet stringent industry standards for electrical goods.
Warehouse stock
Out of stock
Elstila logistikos centras
Gamybos g. 10 (parduotuvės nėra)
+370 37 205802
I - V
07:00 - 16:00
In stock
Elstila (Kaunas)
Jonavos g. 62a
+370 37 205802
I - V
08:00 - 17:00
In stock
Elstila (Klaipėda)
Šiaurės pr. 11
+370 46 380100
I - V
08:00 - 17:00
In stock
Elstila (Vilnius)
Geologų g. 7a
+370 5 2104888
I - V
08:00 - 17:00
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
More info

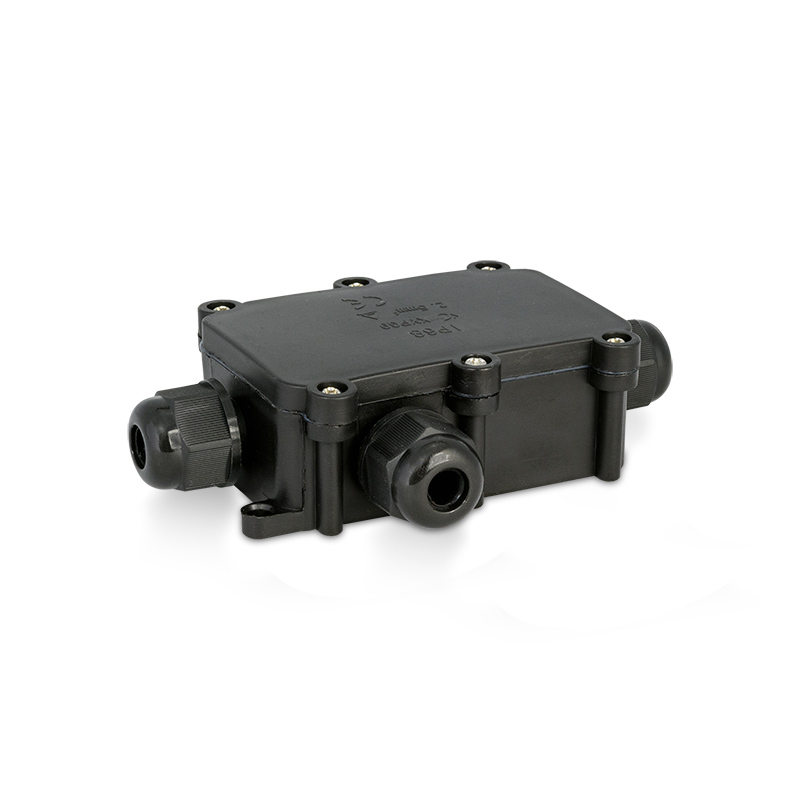

The PI2P and PI3P installation boxes are fully airtight, featuring IP68 protection thanks to their sealing gaskets.
They are equipped with terminal blocks for 4x2.5 mm² conductors (screw terminals). The boxes are made of durable black plastic and feature external mounting brackets and screw-fastened lids with gaskets. The PI2P model has two cable entries with PG9 glands, while the PI3P model has three. The box dimensions are 80x52x31 mm (excluding glands). The maximum voltage is 450 V AC, and the maximum current is 24 A. They have successfully passed CE certification testing.
Informacija gamintojo svetainėje
Product features
| Degree of protection | IP 68 |
| Nominal voltage | 250 V |
| Color | black |
| Material | plastikas |
| Temperature | -40° C iki +85° C |
