ELEKTROMONTAŻ Foundation for safety lighting poles
Warehouse stock
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
More info
Design:

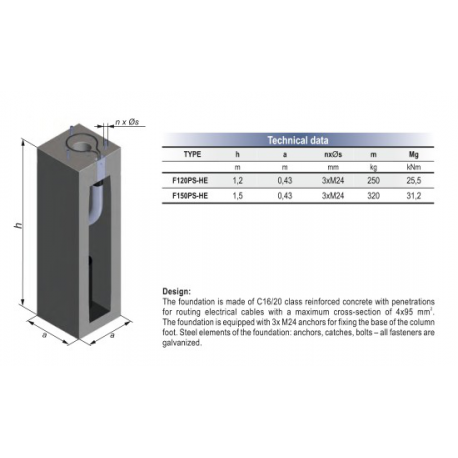

The foundation is made of C16/20 class reinforced concrete with penetrations for routing electrical cables with a maximum cross-section of 4×95 mm2. The foundation is equipped with 3x M24 anchors for fixing the base of the column foot. Steel elements of the foundation: anchors, catches, bolts – all fasteners are galvanized.
Application:
The F120/PS-HE and F150/PS-HE foundations are intended for setting the new generation safety lighting poles.
The F120/PS-HE or F150/PS-HE foundation, together with the next generation safety poles listed below, ensure the HE energy absorption category for the entire pole-foundation structure (they stop the vehicle or slow it down significantly);
– steel poles t = 3mm; S-_PC-3PS series straight poles, height from 4 m to 11 m,
– steel poles t = 3mm; S-_C-3PS series poles with arms, height from 5 m to 12 m,
– steel poles t = 3mm; S-_PC-3PS-2w series straight poles, height from 4 m to 11 m,
– steel poles t = 3mm; S-_C-3PS-2w series poles with arms, height from 5 m to 12 m.
HE category structures – high energy absorption (stop the vehicle or slow it down significantly);
– recommended for zones of increased pedestrian and bicycle traffic and pedestrian crossings, where there is a risk of a secondary collision with other road users or pedestrians and obstacles within the built-up area as they can stop the vehicle or slow it down significantly at higher speeds, reducing the effects of secondary collisions.
