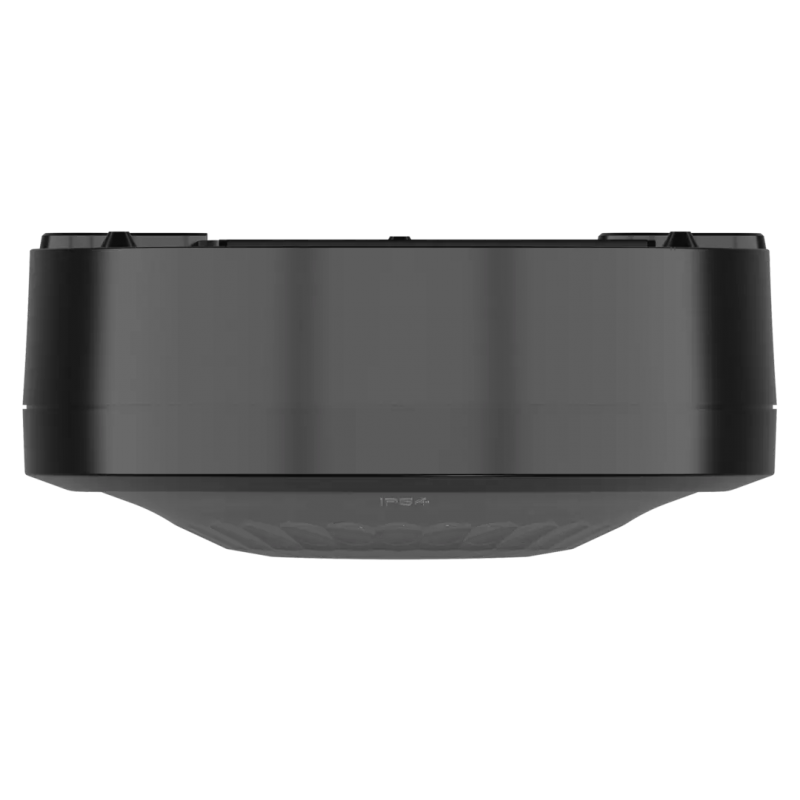

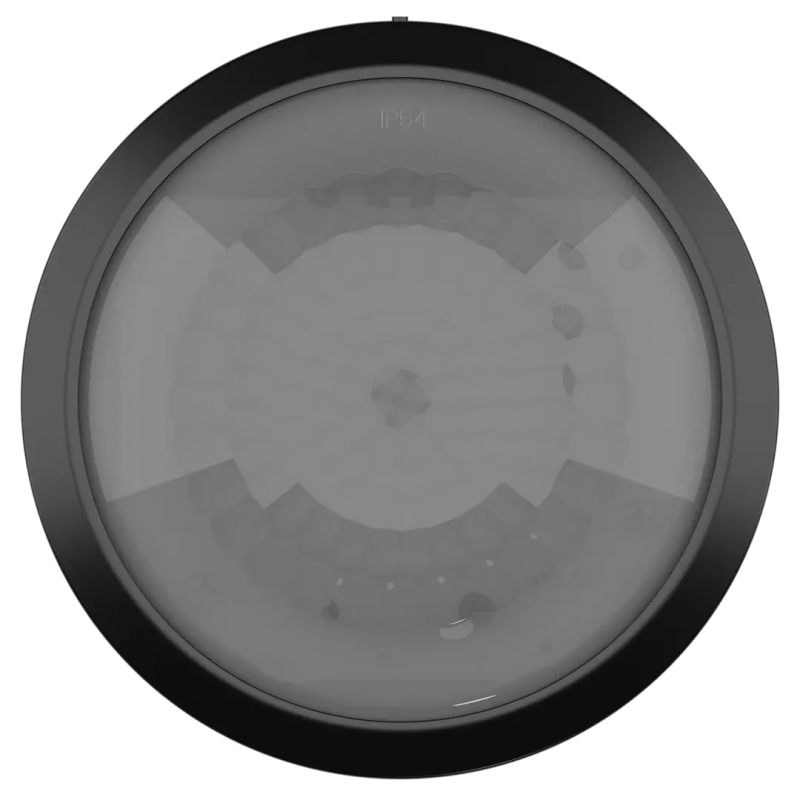

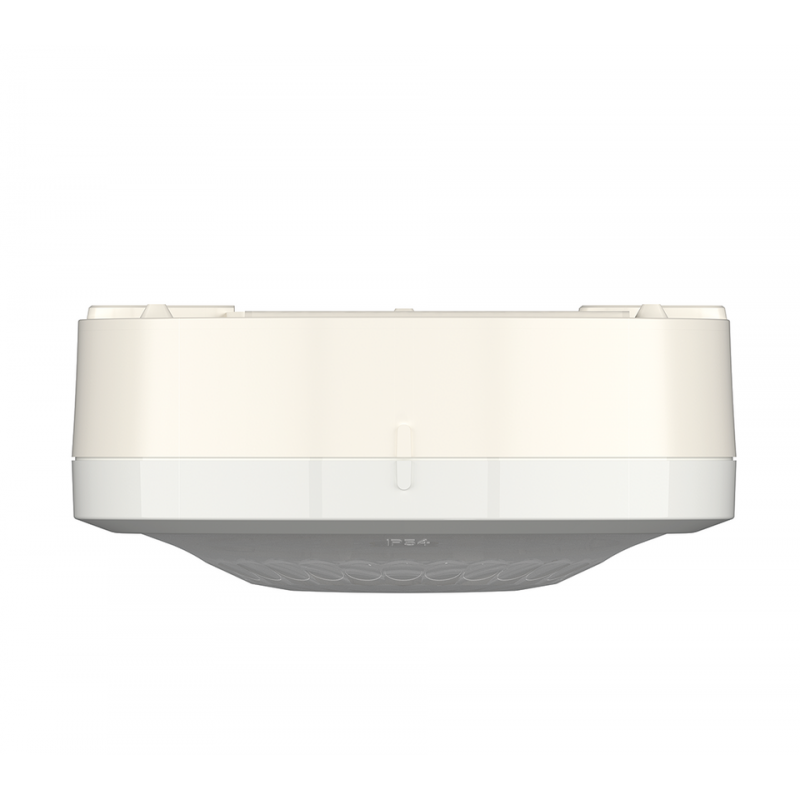

THEBEN Luxa 103 S360-100-12 AP IP54 Motion Sensor
Reference:
theben-luxa360
Manufacturer
- 360° detection range with a 12-meter radius for comprehensive coverage
- IP54-rated for robust protection against dust and water ingress
- Adjustable sensitivity and time delay settings for customized operation
- Surface-mounted design for easy installation on walls or ceilings
- Ideal for both indoor and outdoor applications
Warehouse stock
Out of stock
Elstila logistikos centras
Gamybos g. 10 (parduotuvės nėra)
+370 37 205802
I - V
07:00 - 16:00
In stock
Elstila (Kaunas)
Jonavos g. 62a
+370 37 205802
I - V
08:00 - 17:00
Out of stock
Elstila (Klaipėda)
Šiaurės pr. 11
+370 46 380100
I - V
08:00 - 17:00
In stock
Elstila (Vilnius)
Geologų g. 7a
+370 5 2104888
I - V
08:00 - 17:00
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
Accessories Accessories
More info
- Passive infrared presence detector, surface-mounting
- 1 channel light (relay 230 V)
- Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
- Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
- Networking with wall detector theMura Slave possible
- Connection option for push-button for manual switching
- Operation as fully or semi-automatic possible
- One directional brightness measurement (mixed light measurement)
- Teach-in function, pulse function, test function, staircase lighting function
- Ready for operation immediately due to factory presetting
Information on the manufacturer's website
Product features
| Degree of protection | IP 54 |
| Nominal voltage | 230 V AC |
| Color | balta |
| Power | priklauso nuo lempos tipo |
| Mounting height | 2.5 - 3.5 m |
| Sensitivity zone | iki 12 m |
| Coner angle | 360° |
| Twilight level | 5 - 1000 lx |
| Light duration | 15 s - 30 min |
| Operating temperature | -25° C iki +55° C |
