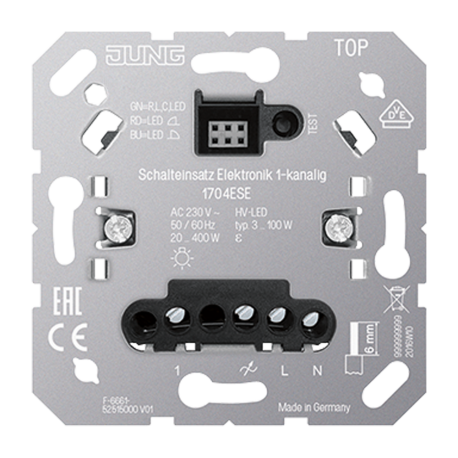

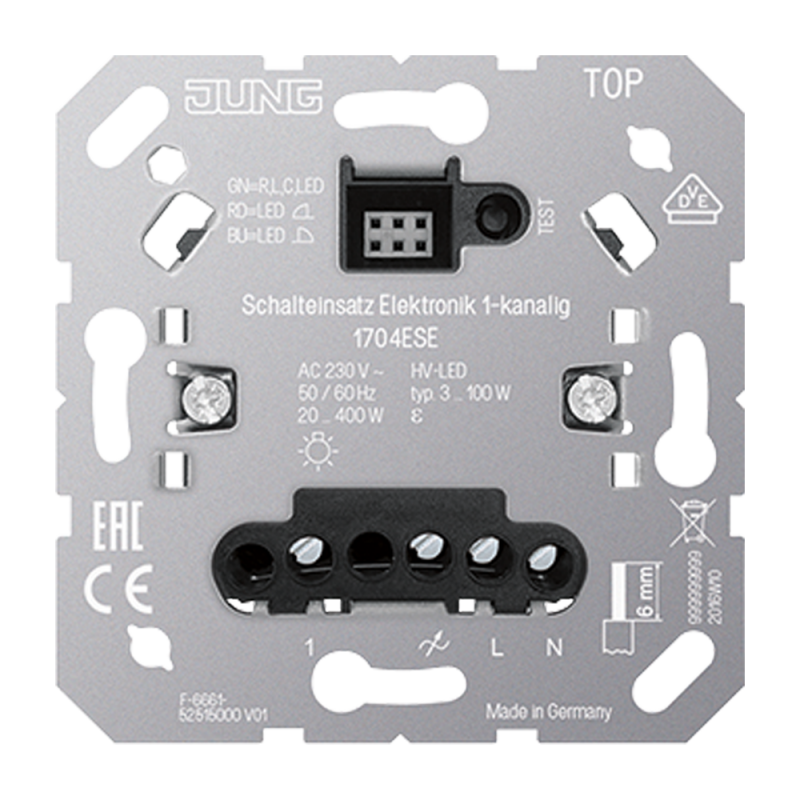

JUNG 1704ESE Electronic switch insert
Reference:
P009519
Code:
1704ESE
Manufacturer
Warehouse stock
Out of stock
Elstila logistikos centras
Gamybos g. 10 (parduotuvės nėra)
+370 687 57400
I - V
07:00 - 16:00
Out of stock
Elstila (Kaunas)
Jonavos g. 62a
+370 37 205802
I - V
08:00 - 17:00
Out of stock
Elstila (Klaipėda)
Šiaurės pr. 11
+370 46 380100
I - V
08:00 - 17:00
Out of stock
Elstila (Vilnius)
Geologų g. 7a
+370 5 2104888
I - V
08:00 - 17:00
- Have a question?
- Phone: +370 37 205 802
- E-mail: parduotuve@elstila.lt
- Ask Question
Accessories Accessories
More info
with satellite input
for covers JUNG HOME ref.-no.: BT .. 17101 .., BT .. 17102 .., BT .. 17181 .., BT .. 17182 .., BT .. 1791 .., BT 17361 ..
for covers eNet ref.-no.: FM .. 1700 .., FM .. 1701 ..
for covers LB Management ref.-no.: .. 1700 .., .. 1750 D .., .. 17180 .., .. 17280 .., .. 1790 D ..
for covers KNX RF ref.-no.: .. 1091 1ST RF .., .. 1092 1ST RF ..
Intended use
- Operation with suitable cover
- Installation in flush box with dimensions according to DIN 49073
Operation with neutral conductor:
- Switching of incandescent lamps, HV halogen lamps, electronic or inductive transformers with halogen or LED lamps, switchable or dimmable HV-LED or compact fluorescent lamps
Operation without neutral conductor:
- Switching of incandescent lamps, HV halogen lamps, electronic or inductive transformers with halogen or LED lamps, dimmable HV-LED or compact fluorescent lamps
Product characteristics
- Switch-on via bulb-preserving soft start
- Connection of satellite units possible
- Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
- Electronic over-temperature protection
- Test operation for functional test
- Device is powered via line conductor and neutral conductor , therefore there is no leading edge phase control or trailing edge phase control
- Device is powered via the line conductor and the connected load and therefore works in the leading edge phase control or trailing edge phase control principle
- Automatic or manual setting of the operating mode suitable for the load
- Display of the set operating mode by means of LED
Product features
| Nominal voltage | 230 V AC |
| Power | priklauso nuo lempos tipo |
Electronic waste collection using EPA
